In this article, we will explore how to configure Nginx as a reverse proxy, an essential technique for managing and optimizing web server traffic. If you are a developer looking to improve request distribution and enhance the security and efficiency of your services, this is a skill worth mastering.

What is a Reverse Proxy?

A reverse proxy acts as an intermediary between clients and servers. Instead of users directly accessing an origin server, the reverse proxy intercepts and forwards requests. With this configuration, we can redirect traffic to different servers, perform load balancing, and add an extra layer of security.

Why Use Nginx as a Reverse Proxy?

Nginx is widely known for its ability to handle a large number of simultaneous requests and for being extremely fast and lightweight. It is one of the best choices for setting up a reverse proxy because it offers robust support for load balancing, caching, and SSL. Additionally, its configuration is flexible and adaptable to different needs.

Difference Between a Reverse Proxy and a Forward Proxy

In simplified terms for web developers, a reverse proxy runs on the server side, while a forward proxy runs on the client side. I created an image in Canva to illustrate its functionality a bit.

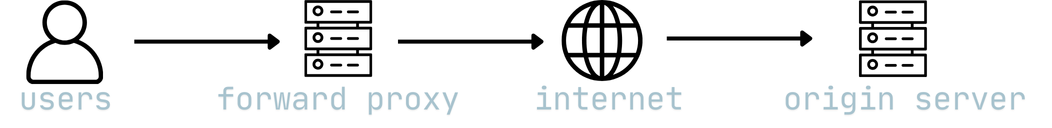

Forward Proxy

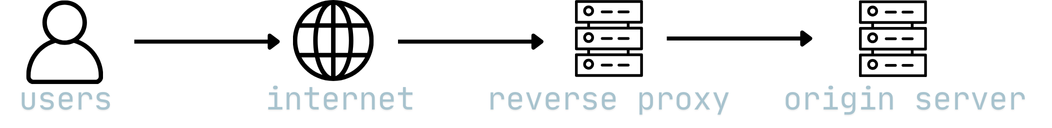

Reverse Proxy

Prerequisites

To follow this guide, you will need:

Access to a server with Nginx installed.
Basic Linux knowledge and terminal access.
Familiarity with your preferred text editor to modify Nginx configuration files.

If you haven't installed Nginx yet, on Debian or Ubuntu-based systems, you can use:

sudo apt update
sudo apt install nginx

Step-by-Step Guide to Configure Nginx as a Reverse Proxy

Step-by-Step Guide to Configure Nginx as a Reverse Proxy Basic Reverse Proxy Setup The first step is to access the Nginx configuration file. Usually, the files are located in /etc/nginx/sites-available/. We will create a new configuration file or modify an existing one.

sudo nano /etc/nginx/sites-available/my_site

Defining the Proxy Server

Within the configuration file, you will need to define a server block to specify how Nginx should handle requests. Here is a basic example:

server {
listen 80;
server_name your_domain.com;

    location / {
        proxy_pass http://localhost:3000;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

Here, proxy_pass indicates where Nginx should forward requests. In this example, we are directing requests to http://localhost:3000, but you can replace it with the desired server's IP address or hostname.

Enabling the Configuration and Restarting Nginx After configuring the file, we need to create a symbolic link so that Nginx can read this configuration. Use the command:

sudo ln -s /etc/nginx/sites-available/my_site /etc/nginx/sites-enabled/

Next, test the configuration to ensure there are no errors:

sudo nginx -t

If everything is correct, restart Nginx to apply the changes:

sudo systemctl restart nginx

SSL Configuration (Optional but Recommended) If you want to add extra security to your application, you can set up SSL. An easy way is to use Certbot to obtain free SSL certificates.

sudo apt install certbot python3-certbot-nginx
sudo certbot --nginx -d your_domain.com

Certbot will automatically configure SSL and update your configuration file.

Testing the Configuration

Now, with the reverse proxy configured, access your domain (or configured IP address) in a browser. Nginx should forward requests to the server configured in proxy_pass.

Common Troubleshooting

502 Bad Gateway Error: This usually occurs when the target server (defined in proxy_pass) is offline or inaccessible. Check if the service is active and if the IP address/port is correct.
Firewall Permissions: Make sure that the ports are open in the firewall (e.g., 80 for HTTP and 443 for HTTPS).
Testing Modifications: Always test the Nginx configuration (nginx -t) before restarting, to avoid syntax errors.

Conclusion

Configuring Nginx as a reverse proxy is a powerful and essential technique to optimize the performance and security of your services. With this basic configuration, you are already prepared to handle various situations, from load balancing to traffic routing and SSL security.

If you want to expand this configuration, Nginx also offers advanced features, such as response caching, data compression, and user authentication, which can be useful for more complex projects.

Explore further and adapt the configuration as needed for your project!
